Product - Forx

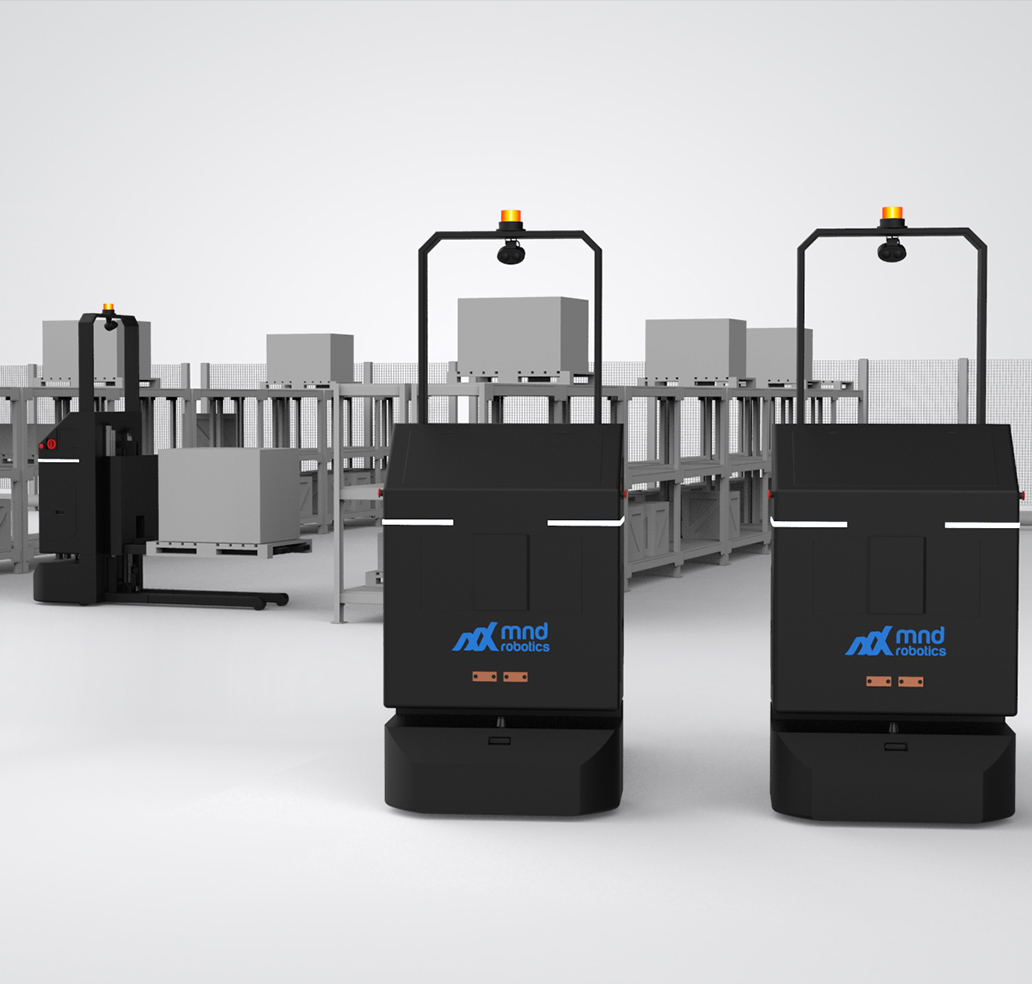

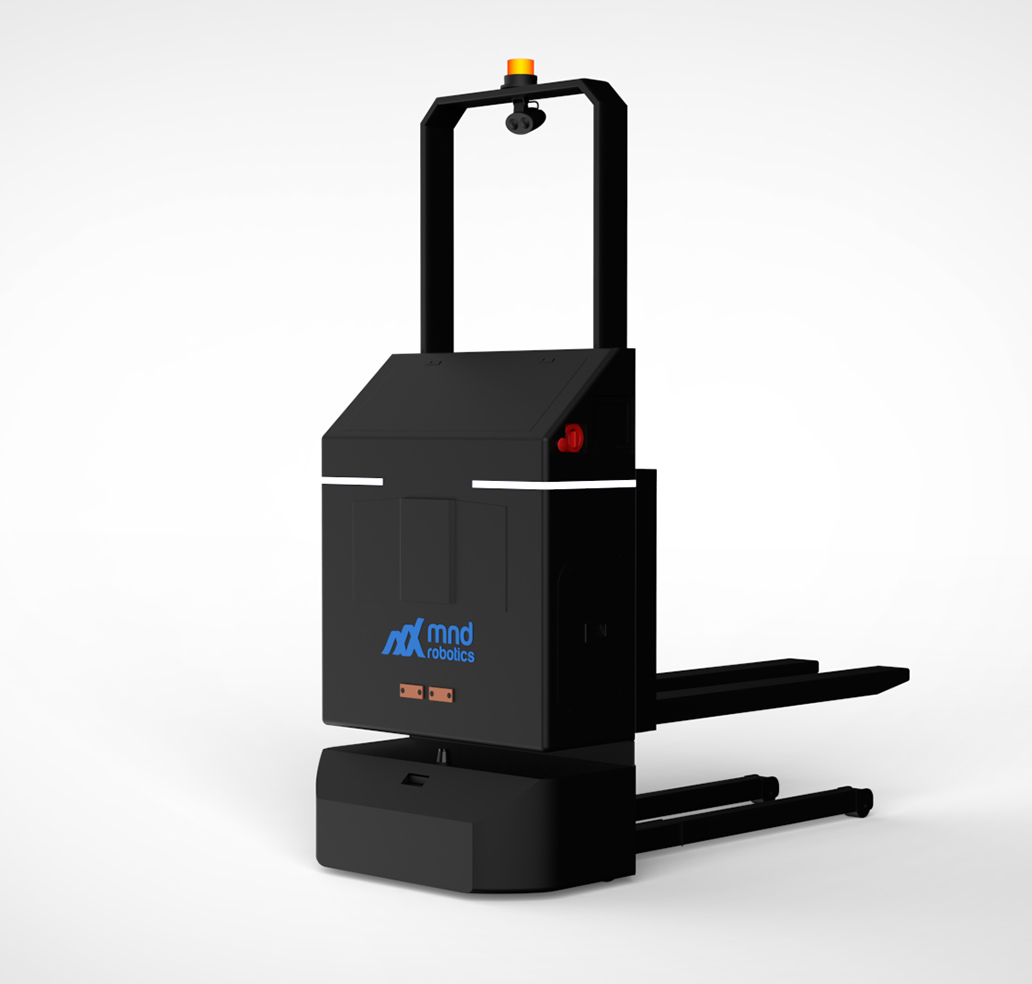

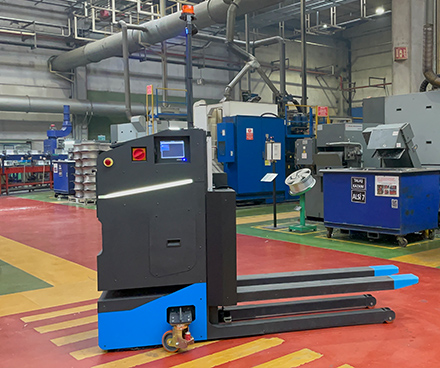

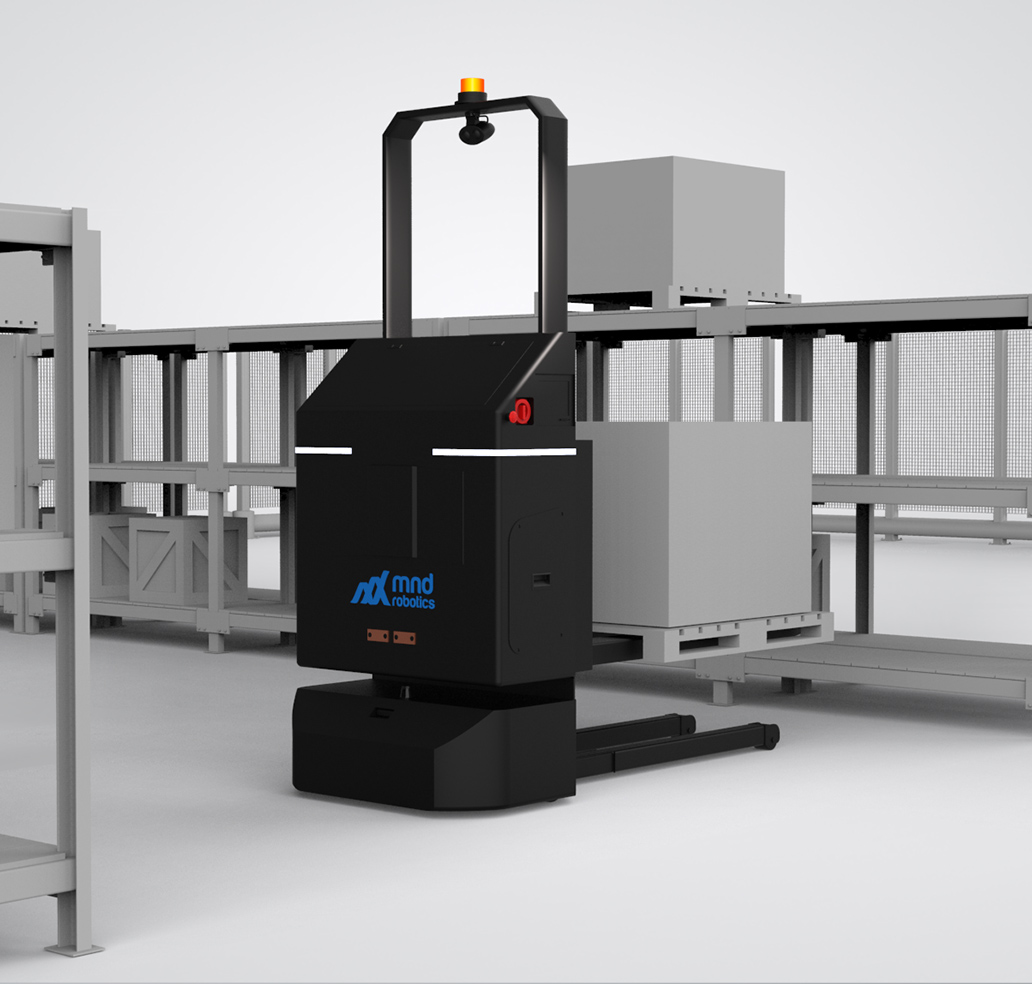

FORX

Our autonomous forklift truck Forx, which is a key part of robotic warehouse solutions today, where Industry 4.0 gains importance, optimizes warehouse management and accelerates productivity and logistics process.It also minimizes the risk of occupational accidents in industrial areas while moving on the planned path. With these advantages, Forx contributes to increasing operational efficiency in warehouses where repetitive works are done, in small and tight spaces or in other industrial areas where full-time operations are required. It especially meets the needs of manufacturing companies that have adopted smart factory environments that provide factory managers with remote access to equipment and machinery.

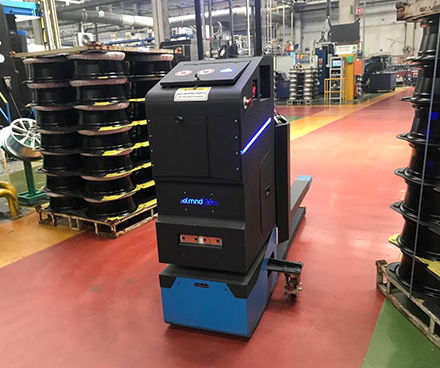

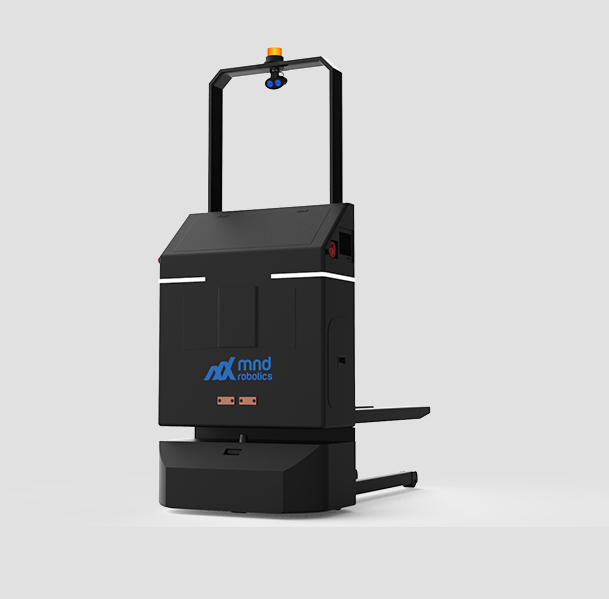

Forx creates a safe environment to work with people in warehouse areas by having 2 lidar sensors, 2 cameras, audible warning system, led direction lights, safety light and blue spotlight in its design.

It performs its intralogistics tasks without the need for an external component. Thanks to the automatic and ergonomic battery change process, it can work 24/7.

“what we can do is limited your dreams”

We are ready to customize our Forx’s design to your needs or take a special design for you. With our expert and experience team members, we can design all the the steps from mechanics to electronics, from software to user experience, specially for your idea

Technical Specification

UNIX-1T

Dimensions 2300 x 1000 x 2500 mm
Weight ~600 kg
Weight ~600 kg
Maximum Payload 1000 kg
Maximum Speed 1 m/s
Turning Radius 1,942 m
Suspension N/A
Positional Accuracy + / - 60 mm
Maximum Grade N/A
Battery Type NMC
Battery Run Time

4 hr (with 1 hr charge)

Charge:Run Time Ratio 1:4

Safety Features



2 x LIDAR, AHRS IMU,

360° LED Lighting,

2 Emergancy Stop,

1 Main switch(315A)
